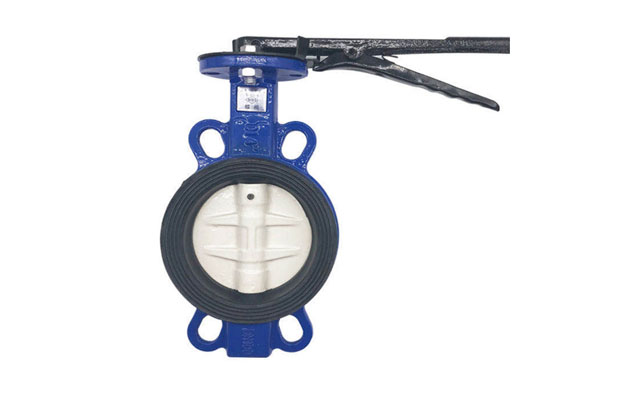

EPDM Lined Wafer Butterfly Valve

Size:: DN40-DN1200
Pressure:: PN10,1.6MPa,150PSI,200PSI
Body Materials:: CI,DI,WCB,304
Disc Materials:: DI,WCB,304,316,C954
Seat Materials:: EPDM
Applicable Medium:: Water,Oil,Gas etc.; Send us Email

Introduction Features Technical Parameters Technical Standard Related Products Inquiry

Product Introduction

No	Parts Name	Materlal	QTY
1	Body	CI,DI,WCB,304	1
2	BushIng	PTFE	2
3	Stem	45,416,410,420,304,304L,316,316L	1
4	Seat	EPDM,NBR,VITON,PTFE	1
5	Disc	DI,WCB,304,316,C954	1
6	Pin	304	2
7	Bushing	PTFE	2
8	Ring	NBR	1
9	Key	45	n
10	Indlcator	Carbon Steel	1
11	Lever	Malleble Ron	1

Product Features

1. Easy and quick opening and closing, labor-saving, small fluid resistance, can be often operated.
2. Simple structure, small external size, short structure length, small volume, light weight, suitable for large diameter valves.
3. When the valve seat channel is fully open, the effective flow area is large and the fluid resistance is small.
4, the opening and closing moment is small, because the shaft butterfly plate by the medium action is basically equal, and the direction of the torque is opposite, so the opening and closing is less effort.
5, sealing surface materials are generally rubber, plastic, so the low-pressure sealing performance is good.
6. Flexible and labor-saving operation, manual, electric, pneumatic and hydraulic modes can be selected.

Technical Parameters

Size		A	B	C	D	L	F	D1	n-φ	K	E	n1-φ1	φ2	G	n2-M	f	J	X	Weight (kg)
mm	inch	A	B	C	D	L	F	D1	n-φ	K	E	n1-φ1	φ2	G	n2-M	f	J	X	Weight (kg)
40	1.5	136	69	33	42.6	30	77.77	110	4-18	77	50	4-6.7	12.6	100	-	13	13.8	3	2.3
50	2	161	80	43	52.9	32	84.84	125	4-23	77	57.15	4-6.7	12.6	100	-	13	13.8	3	2.5
65	2.5	175	89	46	64.5	32	96.2	145	4-26.5	77	57.15	4-6.7	12.6	120	-	13	13.8	3	3.2
80	3	181	95	46	78.8	32	61.23	160	8-18	77	57.15	4-6.7	12.6	127	-	13	13.8	3	3.6
100	4	200	114	52	104	32	70.8	180	4-24.5	92	69.85	4-10.3	15.77	156	-	13	17.77	5	4.9
125	5	213	127	56	123.3	32	82.28	210	4-23	92	69.85	4-10.3	18.92	190	-	13	20.92	5	7
150	6	226	139	56	155.6	32	91.08	240	4-25	92	69.85	4-10.3	18.92	212	-	13	20.92	5	7.8
200	8	260	175	60	202.5	45	112.89 76.35	295	4-25 4-23	115	88.9	4-14.3	22.1	268	-	13	24.1	5	13.2
250	10	292	203	68	250.5	45	92.4	350 355	4-29	115	88.9	4-14.3	28.45	325	-	13	31.45	8	19.2
300	12	337	242	78	301.6	45	105.34	400 410	4-29	140	107.95	4-14.3	31.6	403	-	20	34.6	8	32.5
350	14	368	267	78	333.3	45	91.11	460 470	4-30	140	107.95	4-14.3	31.6	436	-	20	34.6	8	41.3
400	16	400	309	86 102	389.6	51.2 72	100.47 102.42	515 525	4-26 4-30	197	158.75	4-20.6	33.15	488	-	20	36.15	10	61
450	18	422	328	105 114	440.51	51.2 72	88.39 91.51	565 585	4-26 4-30	197	158.75	4-20.6	37.95	536	-	20	41	10	79
500	20	480	361	127	491.6	64.2 82	86.9 101.68	620 650	4-26 4-33	197	158.75	4-20.	641.15	590	-	22	44.15	10	128
600	24	562	459	154	592.5	70.2 82	113.42 120.46	725 770	20-30 20-36	276	215.9	4-22.2	50.65	816	-	22	54.65	16	188

Technical Standard

Technical Requirements:
1.Design Standard: GB/T12238/ API609/JIS B2064/DIN 3354/BS 5155.
2.Face to face: GB/T12221/ASME B16.10/JIS B 2002/DIN 3202/BS 2080.
3.Drive Connection: IS05211.
4.Flange Standard: GB/T9113/ASME B16.5/JIS B2220/DIN 2543/BS 4504.
5.Test: GB/T 13927/API 598/JIS B 2003/DIN 3230/BS 5146.
